JST - JST JRE Connector

We have an organisational structure that is accredited to IATF16949 ‘Quality Management System’. Find out more

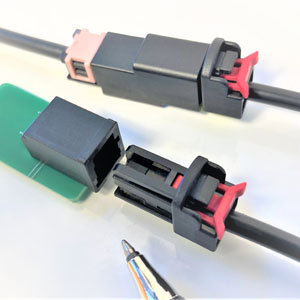

JRE CONNECTOR High Speed Transmission Wire to Board Connector

Fully compatible and designed based on requirements from the Open Alliance TC9 (1000BASE-T1)

· Transmission Speed

Applicable to Max 1Gbps(1000BASE-T1) by using UTP wire cable

· Adopted a Preset Structure with Retainer and CPA Built into the Housing

· (Optional) Connector Position Assurance, CPA

· Through Hole Reflow

· Support to 6 Key Codes

· RoHS Compliant

01 - Connection Type:	Automotive
02 - Product Type:	Wire to Board Crimp style Connectors
04 - Current rating:	3A AC,DC
06 - Temperature range:	-40 to +105 Degrees Celsius
07 - Available number of circuits:	2
13 - PCB Mount Style:	Through-hole Technology (THT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

This product series has some additional information related to it that you can download from the list below.
